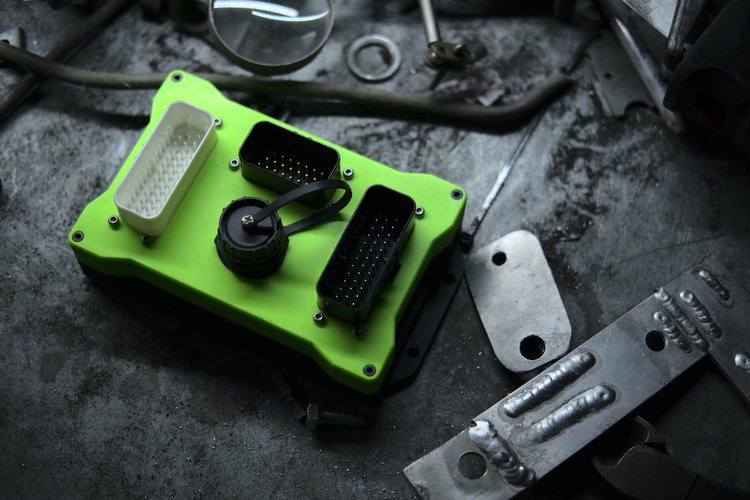

Proteus

Features

• 2x VR crank/cam/vehicle speed inputs
• 6x hall cam/crank or digital input
• Full operation from 6-24v supply
• Dual 5v sensor supplies, 150mA each, fully protected
• Dual protected 12v external sensor supply
• 16x 4A low-side drivers
• 12x 5v ignition (or general purpose) outputs
• Dual H-bridges for electronic throttle (also supports stepper idle valve!)
• 4x 12v 3A high-side outputs
• 12x Analog voltage inputs
• 4x Analog temperature inputs
• 180 MHz ARM Cortex-M7
• TE Connectivity AMPSEAL connectors
• Internal data-logging
